Electric Pitch Control Wind Turbine Easy Installation 5kw

Name: Electric Pitch Control Wind Turbine Easy Installation 5kw
Brand: GREEF
Price: 299 USD

China Electric Pitch Control Wind Turbine Easy Installation 5kw wholesale

Brand Name : GREEF

Model Number : AH-5KW

Certification : CE

Place of Origin : CHINA

MOQ : 1Set

Price : $299-12999

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 50

Delivery Time : 25DAYS

Packaging Details : Foam+plywooden case

Blade material & Qty. : FRP*3

Generator type : 3-phase PMG

Rotor diameter(m) : 5.6

Working wind speed(m/s) : 3-30

Rated wind speed(m/s) : 11

Rated rotating speed(r/min) : 240

Contact Now

5kw Easy Installation Electric Pitch Control Wind Turbine

Model: 5KW variable wind turbine |Off-grid system | Folding tower

Leading technology-intelligent control, strong system scalability

1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.

Electric Pitch Control Wind Turbine Easy Installation 5kw

Recommended for

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification

Model	AH-5KW
Rotor diameter(m)	5.6
Blade material & Qty.	FRP*3
Rated power(kW)	5
Rated wind speed(m/s)	11
Rated rotating speed(r/min)	240
Generator type	3-phase PMG
Working wind speed(m/s)	3-30
Start-up wind speed(m/s)	2.5
Survival wind speed(m/s)	60
Rated voltage(VDC)	400/240/custom made
Speed regulation method	Pitch-controlled
Wind answering method	Up wind
Stop method	Auto brake
Gale protection	Smart control+unattended
weight(kg)	400
Noise level(dB)	≤65
Tower height(m)	≥8
Tower model	Tilt-up tower
Working temperature	-20℃～+50℃

Project case

25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands

New Energy Power Supply System at Communication Base Stations in Danish

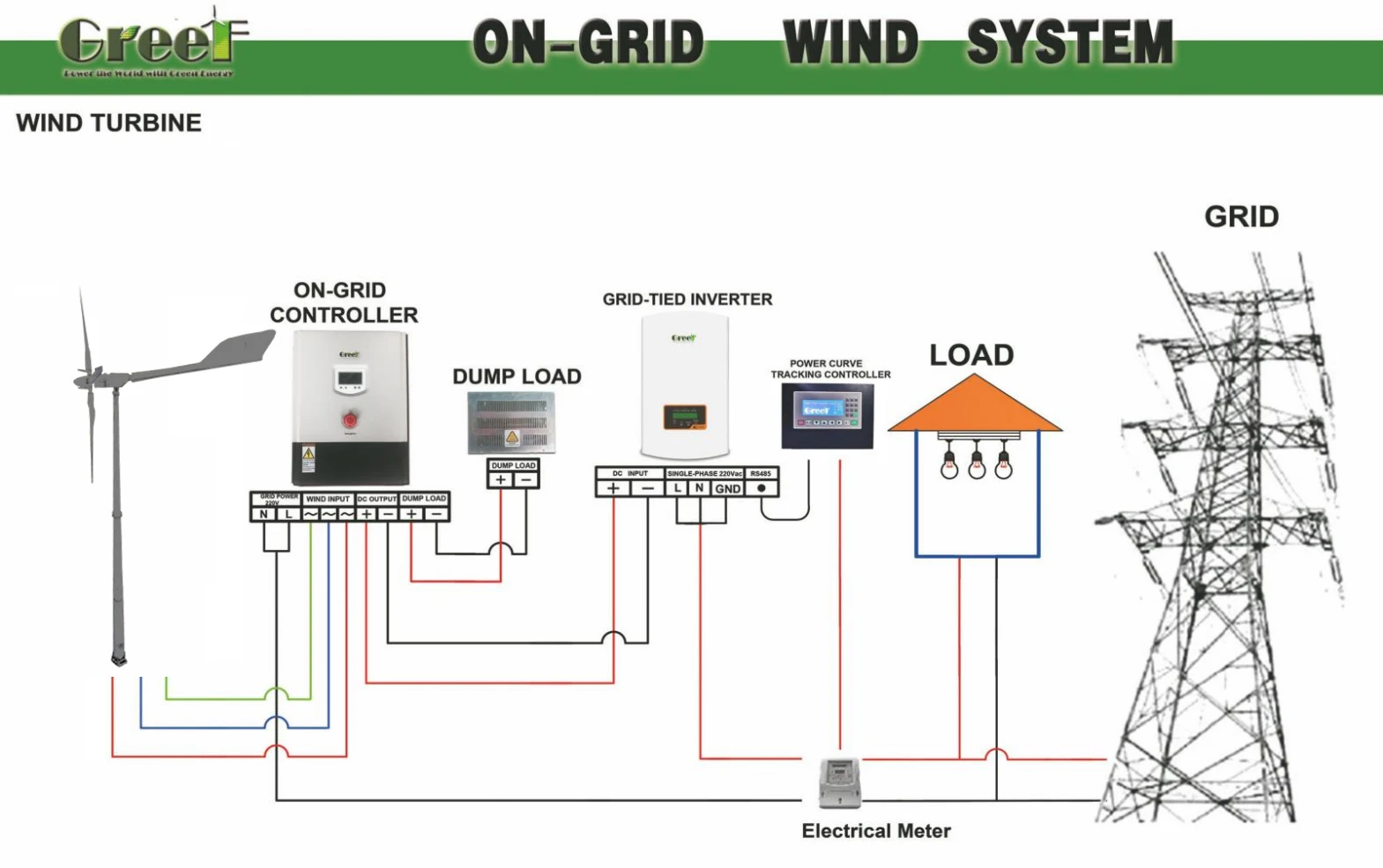

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
